Paghugas sa makina nga pagpuno sa likido

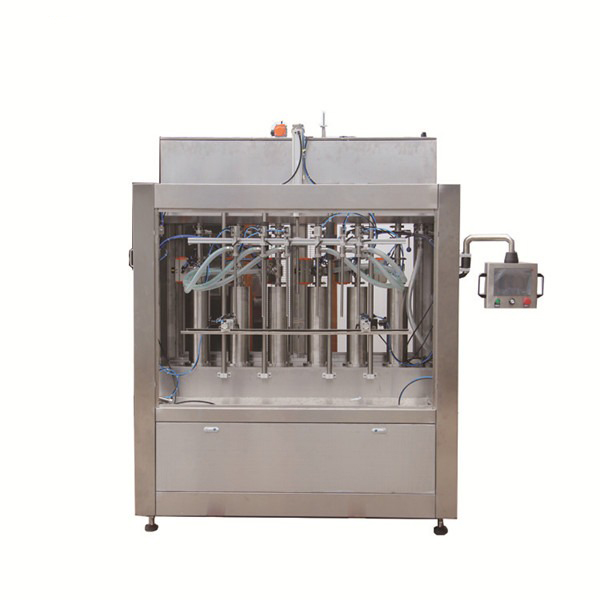

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Mga detalye


dishwashing liquid filling machine
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Paglaraw


AK sa EU
ISO9001
Pagtuman sa mga kinahanglanon sa GMP
longlife of service, low mainteinance rate

Panguna nga gimbuhaton


Ang makina nag-uswag sa taas nga katukma nga makina sa pagpuno nga makompleto ang pag-ihap sa botelya, awtomatiko nga proseso ug pagpatik sa awtomatik.

Mga Tampok

1. Ang mga compact nga istruktura, nindot tan-awon, dali nga operahan ug hingpit nga awtomatiko.

2. Ang mga sangkap nga nakontak sa materyal gihimo sa stainless steel, dali nga limpyohan.

3. Ang gikusgon nga pagpuno gikontrol sa mga balbula sa pelikula aron masiguro ang katukma.

4. Ang katulin ug taas nga tukma nga mga balbula sa pagpuno masiguro nga wala’y pagtulo.

5. Gisangkapan kini nga sistema sa high-effective nga cap feeding

Kapilian sa Pinulong

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Panguna nga mga kinaiya:


1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Mahimo nga magsag-ulo sa daghang mga parameter, makatabang alang sa lainlaing mga detalye nga nausab, ang tanan nga pagpuno sa dosis mahimo nga mapaayo pinaagi sa touch screen.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Panguna nga parameter sa teknikal


ItemNgalanParamilit sa teknikal
01Ang sukat sa makina (L * W * H)2200mm * 1400mm * 2800mm
02Ang gibug-aton sa makinaMga 1400Kg
03Ang sulud sa pag-abli sa sulud sa sulud≥φ35mm
04

Ang angay nga sudlanan

1Liter .2Liter
05Gitas-on nga sulud80-350mm
06

Suplay sa kuryente

AC 380V; 50HZ
07Gahum5Kw
08Pagpuno sa katukma1 ± 1%
09Ang gigikanan sa hangin0.6Mpa lig-on ug limpyo nga gipilit nga hangin
11Gidaghan sa pagpuno sa mga nozzle13
12Gitas-on sa conveyor900mm ± 50mm
13kapasidad≤3200bottles / oras (pagkuha og tubig ingon pagsulay)
14Botelya sa direksyon sa pagpakaonGikan sa wala hangtod sa tuo

Dali nga mga Detalye


Type: Pagpuno sa Makina
Kahimtang: Bag-o
Aplikasyon: Kemikal
Type sa Packaging: Mga Botelya
Materyal nga Packaging: Kahoy
Awtomatik nga Grado: Awtomatiko
Nahiangay nga Gipalayo: Pneumatic
Boltahe: 220v
Gahum: 3KW
Dapit sa Sinugdanan: Shanghai. China (Mainland)
Ngalan sa Brand: NPACK
Ang sukod (L * W * H): 2200mm * 1400mm * 2800mm
Timbang: 1400
Sertipikasyon: CE
Gihatag nga Human nga Pagbaligya nga Serbisyo: Ang mga inhenyero magamit sa makinarya sa serbisyo sa gawas sa nasud
materyal: SS304
PLC: Panasonic
Paghikap sa screen: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
