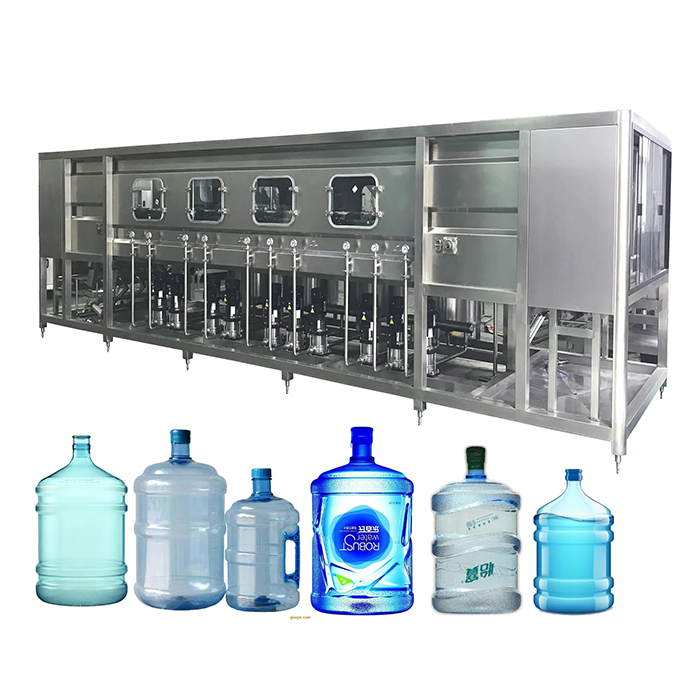

5 Ang Gallon Barrel Bottle Water Filling Machine nga gihimo sa China

Awtomatikong 5 Gallon nga Pag-inom sa Water Filling Machine

1, It is controlled by PLC and made of SUS304.

2, It integrates bottle washer, filler and sealer into one unit.

3, In order to achieve the purpose of washing and sterilizing ,washing machine use multi-washing liquid spray and-thimerosal soray, this merosal can be used circularly.

4, The sealer can seal barrel caps automatically. This line equips with water spraying device in order to ensure those caps sterile and clean, also this line can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging.

5, It is equipped with automatic trouble protected device.

Ang among mga Serbisyo


1, The warranty time is one year. Within warranty period,any product broken or damage, we will offer the repair service for free or replace for free.

2, Beside the warranty days, we continue to provide life-long maintenance services.

3, We provide the technical support, solve the technical problems.And our engineers available to service machinery overseas.

Customer service palihug kontaka kami!

Dali nga mga Detalye


Type: Pagpuno sa Makina
Kahimtang: Bag-o
Aplikasyon: Pag-inom
Matang sa Pagputos: Bara
Materyal nga Packaging: Plastik
Awtomatik nga Grado: Awtomatiko
Nahiangay nga Gipalayo: Elektrisidad
Boltahe: 380V / 50HZ
Gahum: 3KW
Dapit sa Sinugdanan: Shanghai, China (Mainland)
Brand Name: VKPAK
Timbang: 7T
Gihatag nga Human nga Pagbaligya nga Serbisyo: Ang mga inhenyero magamit sa makinarya sa serbisyo sa gawas sa nasud
Ngalan: 5 nga galon nga makina sa pagpuno sa tubig
Garantiya: usa ka tuig
Materyal: Ang grade sa pagkaon SUS304
Function: Bottle Paghugas Pagpuno Capping


5 gallon barrel bottle water filling machinery is a specialized equipment designed to fill 5-gallon (19-liter) bottles with drinking water. This type of machinery is commonly used in the bottled water industry and other related industries where large quantities of drinking water are needed.

The machinery consists of several components, including a bottle washing station, filling station, and capping station. The bottle washing station uses a high-pressure spray to clean and sanitize the bottles before filling. The filling station accurately dispenses the water into the bottles, while the capping station seals the bottles with a screw-on cap.

The machinery also includes a conveyor system that transports the bottles through each stage of the filling process. The system is designed to handle a large number of bottles efficiently and with minimal manual intervention.

The machinery is fully automated, with a control panel that allows operators to adjust the filling speed and monitor the machine's performance. The machine can fill hundreds of bottles per hour, making it ideal for large-scale operations.

The 5 gallon barrel bottle water filling machinery is also designed for easy cleaning and maintenance. All components are easily accessible and can be disassembled quickly for cleaning.

Overall, 5 gallon barrel bottle water filling machinery is an essential piece of equipment for the bottled water industry. It ensures that the water is accurately measured, packaged, and protected, maintaining the quality and safety of the product.
